AL-VZ01-XX Vzir’ Regalia

Ascendant Lords – Kingdom of Vzir
Classification: Melee


To keep the Kingdom of Vzir’s fighting forces in top condition, the female Monarch, Rin Al’ Vzir, requested her Court Engineers to completely overhaul her Vzir’ Rin reFrame to match the newer reFrame models of neighboring countries.

Keeping up with their individual personalities and fighting styles, the new Vzir’ Regalia features a slender, more agile design and is now equipped with the SW-VZ-DUALR Dual Swords. The Quorus core flight module was further upgraded to allow better low altitude mobility. This is well protected by the new armor skirting design that also acts as extra flight stabilizers.

AL-VZ01-XX Vzir' Regalia
AL-VZ01-XX Vzir' Regalia
AL-VZ01-XX Vzir' Regalia
AL-VZ01-XX Vzir' Regalia
AL-VZ01-XX Vzir' Regalia
AL-VZ01-XX Vzir' Regalia


The Vzir’ Regalia is a rebuild of my 2015 Vzir’ Rin model. This was one of the few remaining reFrame version 1 that I had kept all these years along with his twin brother’s Vzir’ Ran.

This was long overdue for an overhaul and I actually announced rebuilding it back in 2017 with the R3build project. It just so happened that Simon Liu over at FB / IG / Flickr announced MECHTOBER 2020 which is a build challenge that tasks builders to make 1 piloted mech per week of October. I thought to myself this was a perfect push to finally finish the R3build project.

Among the 7 designs announced in the project, I exactly had 4 that I needed to update to the V3 reFrame. I intend to do the Vzir’ Ran next, then the Skalmold, and lastly the Eagle EWAC.

Inspiration and sources

Even back in 2015, the base inspiration for the Vzir’ Rin was the Face Nemesis enemy design from Xenoblade Chronicles 1. I actually played this game back on my Nintendo 3DS when it was first re-released and just loved the enemy mech designs.

With the Nintendo Switch remastered version released this early 2020, I decided to get myself a collector’s edition which included an artbook of the game. This allowed me to study the design much better with access to more concept artwork. I was also able to I apply the last 5 years of building knowledge and experience, as well as all the newer LEGO pieces, to make a much better version of the Vzir’ Rin.

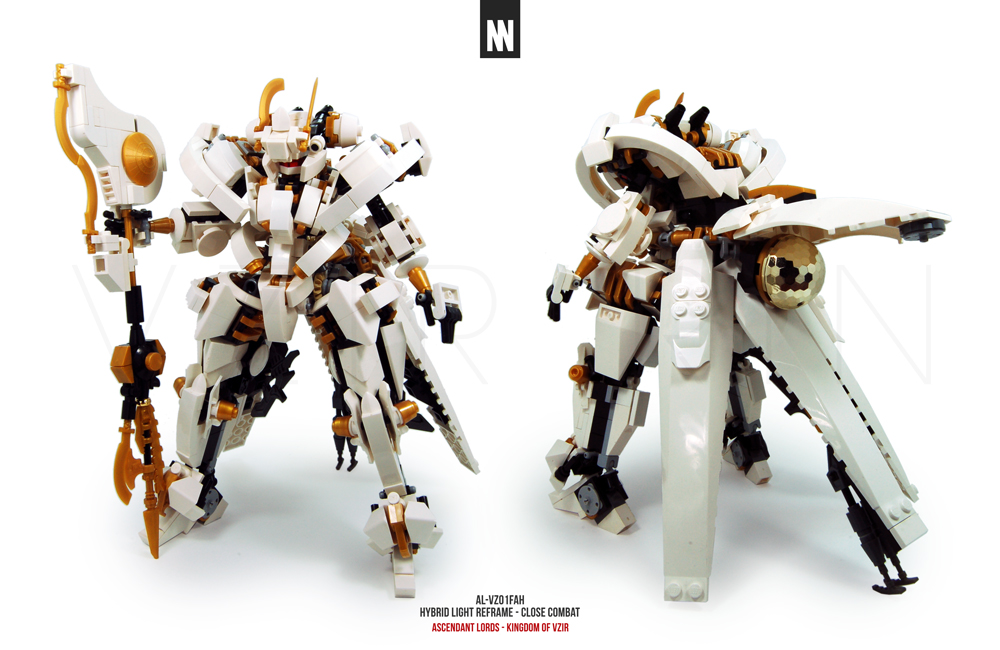

2015 Vzir' Rin using the reFrame V1
Face Nemesis boss design from Xenoblade Chronicles 1

WIP Process

Due to the short time window I spent building the Regalia, I didn’t have much time to take WIP photos.

I. Head Build

When I started rebuilding the Vzir’ Rin, I knew that one big thing I wanted to drastically change was the head. I always found the original head design to be too clunky looking with awkward shapes all over. A nice touch was the head “buns” ala Chun Li but this didn’t really fit in with the overall aesthetic I was going for.

The newer head design had to look sleeker while still making use of the pearl gold khopesh swords. I was really happy with how the white skis angled forming that V shape for the head and closing any weird internal gaps (more obvious in the finished build photos).

II. Torso assembly

I actually spent a considerable amount of time for the cockpit hatch cover. Originally, it was supposed to look something like the Paragon Alpha’s chest cover (as this also an Ascendant Lord reFrame that was updated to V3).

I ended up changing a few things such as not using the white Nexo Shield tile for the upper chest cover and not using the rubber stretcher piece in dark red. I wanted to keep the chest design quite compact as the end silhouette had to be feminine.

III. Waist and legs

The waist design actually follows both the Paragon Alpha and Izlude’s core assembly. The design only starts to change with the front crotch plating. I knew from the start of this rebuild that I wanted to use the huge curved tile pieces (27507) to replace the huge curved pieces (6060) in the original.

The legs also mostly followed the Paragon Alpha’s design, mimicking the placement and angles of the (gold) bad robot arms. The feet were actually the only thing I reused from the original Vzir’ Rin build.

IV. Leg armor skirting

The original design had the armor skirt pieces attached to the belt area. This made it quite bulky and the weight of all those pieces shifted the waist weight distribution backwards.

I decided for the rebuild to offload the weight from the waist by attaching the attached armor skirts to the legs using small ball joints.

The curved pieces were also supposed to be positioned as in the picture but I realized it would block the hands placement.

V. Arms and final adjustments

The last thing to build were the arms and were modeled similarly to how I did the arms for the Havoc as this was also one of my more feminine silhouette builds.

As mentioned in step IV, I moved the curved sections to make way for the arms. This also worked as it looked closer to the Face Nemesis design for the waist and added a nice shape duplication effect from the waist curved section.

Not pictured here are the dual swords which are made of the same pieces as the lower detail of the longer leg armor skirt. Combining both swords makes for a bigger double-bladed polearm weapon.

Notable Parts usage

I. Huge curved tiles

27507 Tile, Round Corner 4 x 4 Macaroni Wide

One of my new favorite pieces, especially after the Ludens build. While quite situational to use, I like using it with lampholder pieces to get this unique notched curved shape.

II. Khopesh swords

93247 Minifigure, Weapon Sword, Khopesh (Sickle Sword)

One of my favorite minifig sword pieces to use for my mechs. I used these in the original Vzir’ Rin (and Ran) so it was fitting to use them for the rebuild version.

III. Flight Unit Dome

30208 (alt 71967) Cylinder Hemisphere 4 x 4 Multifaceted

An old piece, this half sphere piece is the flight module according to the original Vzir’ Rin description. Of course I had to reuse it for the newer design. It’s a bit tricky to attach to anything other than a 4×4 round plate.
